This mini digger is great for landscapers, tradesmen and the home handyman alike. The 4-in-1 bucket allows dirt, rocks, sand, bark, logs plus so much to be easily scooped, grabbed or dug. Load the bucket with fertilizer or grab bails of hay. With a maximum reach of 1.6m you can easily load utes and trailers. These machines are ideal for excavating, add the trencher attachment and lay cables and piping with ease.
The engine drives a hydraulic pump which is the heart of the machine. Hydraulics drive the tracks and also allow the use of a range of hydraulic implements. Mini Track Steer Loader Operating Weight 890kg.
Standard Inclusions:
- 4in1 BUCKET

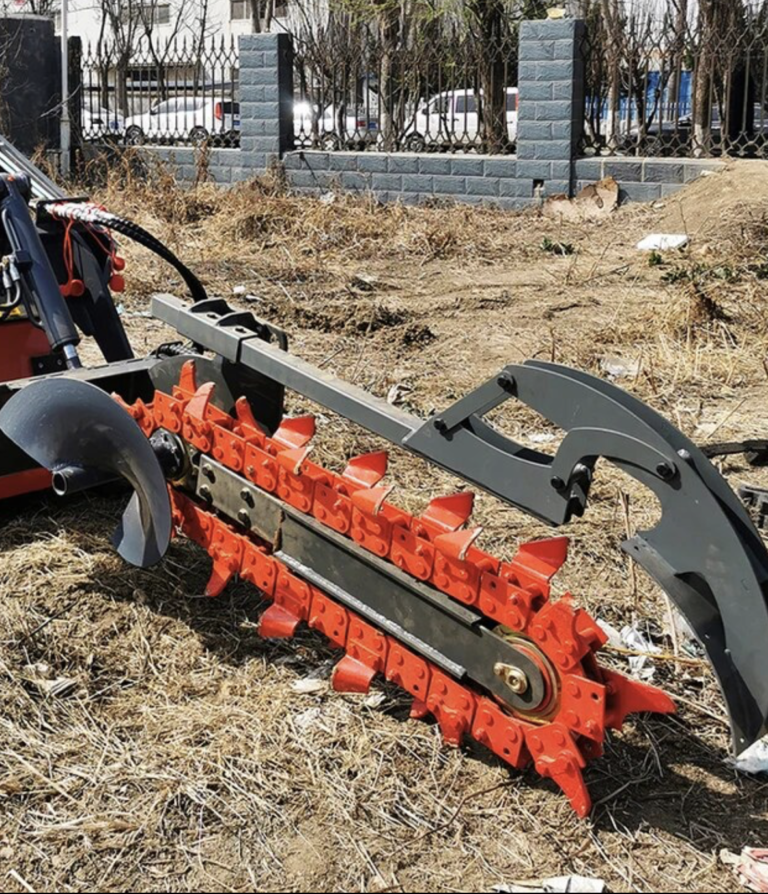

- TRENCHER
- Three Pumps & Three Valves
Filters - Operating Load: 200kg
- Bucket Capacity: 0.15m³
- Max Lifting Force: 375kg
- Travel Speed: 0-5km/h
- Pressure: 17 Mpa
- Raise Time: 4.3 Seconds
- Lower Time: 3.3 Seconds
- Dump Time: 1.5 Seconds
- Size :2285x1090x1270 mm
- Type: Petrol Engine
- Output Power: 17.1Kw (23HP)/3600rpm
- Fuel Consumption: ≤6.7 L/h
- Start up mode: Power Start
- Fuel Oil: 25L
- Motor Oil: 1.7L
- Hydraulic Oil: 25L
Manual – https://supplynhire.com.au/wp-content/uploads/2023/10/Mini-loader-manual-.pdf
